A10VSO140DRF/32L-PPB22U00 A10VSO140DRF/32L-PPB22U99 A10VSO140DRF1/32L-PPB22U99 Rexroth Mechanical Engineering Equipment Variable Piston Pump Imported from Germany

A10VSO140DRF/32L-PPB22U00 A10VSO140DRF/32L-PPB22U99 A10VSO140DRF1/32L-PPB22U99 Rexroth Mechanical Engineering Equipment Variable Piston Pump Imported from Germany
A10VSO140DRF/32L-PPB22U00 A10VSO140DRF/32L-PPB22U99 A10VSO140DRF1/32L-PPB22U99 Rexroth Mechanical Engineering Equipment Variable Piston Pump Imported from Germany

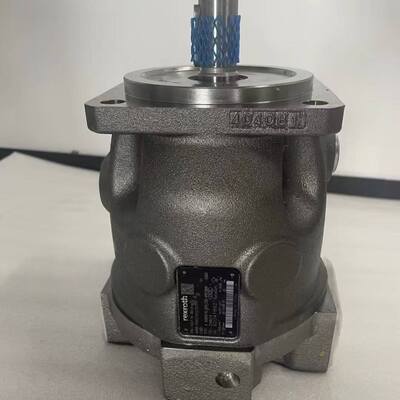

Large Image :  A10VSO140DRF/32L-PPB22U00 A10VSO140DRF/32L-PPB22U99 A10VSO140DRF1/32L-PPB22U99 Rexroth Mechanical Engineering Equipment Variable Piston Pump Imported from Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: A10VSO140DRF/32L-PPB22U00 A10VSO140DRF/32L-PPB22U99 A10VSO140DRF1/32L-PPB22U99
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden box
Delivery Time: negotiation
Payment Terms: D/A,L/C,D/P,T/T,MoneyGram,Western Union
Supply Ability: negotiation
Contact Now Chat Now

A10VSO140DRF/32L-PPB22U00 A10VSO140DRF/32L-PPB22U99 A10VSO140DRF1/32L-PPB22U99 Rexroth Mechanical Engineering Equipment Variable Piston Pump Imported from Germany

Description
Standard Or Nonstandard: Standard Type No: AA10VO71DFR1/31R-VSC91N00
Mountingtype: Flange Mount Condition: Internal Meshing Principle
Service: Free Maintenance Certifisaarion: ISO
Highlight:

Rexroth hydraulic piston pump

,

A10VSO140DRF variable pump

,

German imported Rexroth pump

A10VSO140DRF/32L-PPB22U00 A10VSO140DRF/32L-PPB22U99 A10VSO140DRF1/32L-PPB22U99 Rexroth Mechanical Engineering Equipment Variable Piston Pump Imported from Germany
Parameter Details
Brand Name Rexroth
Place of Origin Fujian, China
Warranty 12 Months
Video Outgoing-Inspection Provided
Machinery Test Report Provided
Application Machinery Repair Shops
Material Iron
Condition Original
Quality Assurance 100% Tested, Great Performance
Certification ISO
Key Features Long Service Life, Low Noise
A10VSO140DRF/32L-PPB22U00 A10VSO140DRF/32L-PPB22U99 A10VSO140DRF1/32L-PPB22U99 Rexroth Mechanical Engineering Equipment Variable Piston Pump Imported from Germany 0
A10VSO45DG/32L-VPB22U00
A10VSO45DRG/32L-PPB22U00
A10VSO45DRF1/32L-PPB22U00
A10VSO45DRS/32L-PPB22U00
A10VSO45DRF/32L-PPB22U00
A10VSO45DR/32L-PPB22U00
A10VSO180DG/32R-PPB32U00
A10VSO71DRS/32L-PPB22U99
A10VSO71DRF/32L-VPB22U99
A10VSO180DR/32R-VPB22U00
A10VSO180DRS/32R-PPB22U00
A10VSO140DG/32R-PPB32U0
A10VSO180DG/32R-VPB22U00
A10VSO140DG/32R-PPB32U99
A10VSO140DG/32R-VPB32U00
A10VSO140DG/32R-VPB32U99
A10VSO180DR/32R-PPB22U00
A10VSO140DRF/32R-VPB22U00
A10VSO180DRG/32R-PPB22U00
A10VSO140DRF/32R-VPB22U99
A10VSO180DG/32R-PPB22U00
A10VSO180DRF/32R-PPB22U00
Installation & Commissioning
What are the critical installation precautions for the A10VSO pump?
Proper installation is critical to avoid premature failure. Follow these key guidelines:
  • Mounting Position: Install the pump horizontally (drive shaft parallel to the ground) to ensure proper lubrication. Vertical mounting (drive shaft upward) is allowed but requires a minimum oil level in the reservoir to prevent cavitation.
  • Drive Connection: Use a flexible coupling (e.g., jaw coupling) to align the pump drive shaft with the motor shaft (misalignment ≤0.1 mm radial, ≤0.2 mm axial). Avoid using belts or chains, which cause excessive shaft stress.
  • Suction Line Requirements: The suction line diameter must be ≥ the pump's suction port diameter; keep the line as short as possible (≤1.5 meters) with minimal bends. Ensure the suction filter has a flow capacity ≥1.5x the pump's maximum flow (filtration precision 100 μm).
  • Discharge Line Installation: Install a pressure gauge and relief valve (set to 10% above the system's maximum operating pressure) in the discharge line. Use flexible hoses near the pump to absorb vibration.
  • Reservoir Ventilation: The hydraulic reservoir must have a breather filter (ISO 16/13) to prevent contamination and maintain atmospheric pressure.
How to perform the initial commissioning of the A10VSO pump?
Commissioning should be conducted by qualified technicians in a step-by-step manner to ensure safe and optimal operation:
  • Pre-Commissioning Check: Verify all connections (mechanical, hydraulic, electrical) are secure and correctly aligned.
  • Check the hydraulic reservoir oil level (must be 20-30% above the suction port) and fluid quality.
  • Ensure all valves (suction, discharge, relief) are in the open position.
  • Priming the Pump: Loosen the air bleed screw on the pump's discharge port.
  • Manually rotate the pump drive shaft 5-10 times (using a wrench) to fill the pump with oil and expel air.
  • Tighten the air bleed screw once oil flows out without bubbles.
  • Initial Start-Up: Start the motor at low speed (500-1000 rpm) for 1-2 minutes.
  • Check for abnormal noise, vibration, or oil leaks. Stop immediately if any issues are detected.
  • Gradually increase the speed to the nominal operating range (1000-2800 rpm).
  • Control Calibration: For pressure-compensated models: Adjust the pressure setpoint using the compensator screw (refer to the system's pressure requirement).
  • For electro-hydraulic models: Send a 0-100% electrical signal and verify that the pump's displacement changes linearly (use a flow meter to confirm flow rate).
  • Load Test: Apply gradual load to the system (up to the maximum operating pressure).
  • Confirm that the pump's control mechanism responds correctly (e.g., pressure compensator reduces flow at set pressure).
  • Monitor pump temperature (should not exceed 60°C after 30 minutes of operation).
